BaseStation4 MK2
Basestation4 Fiber Converter

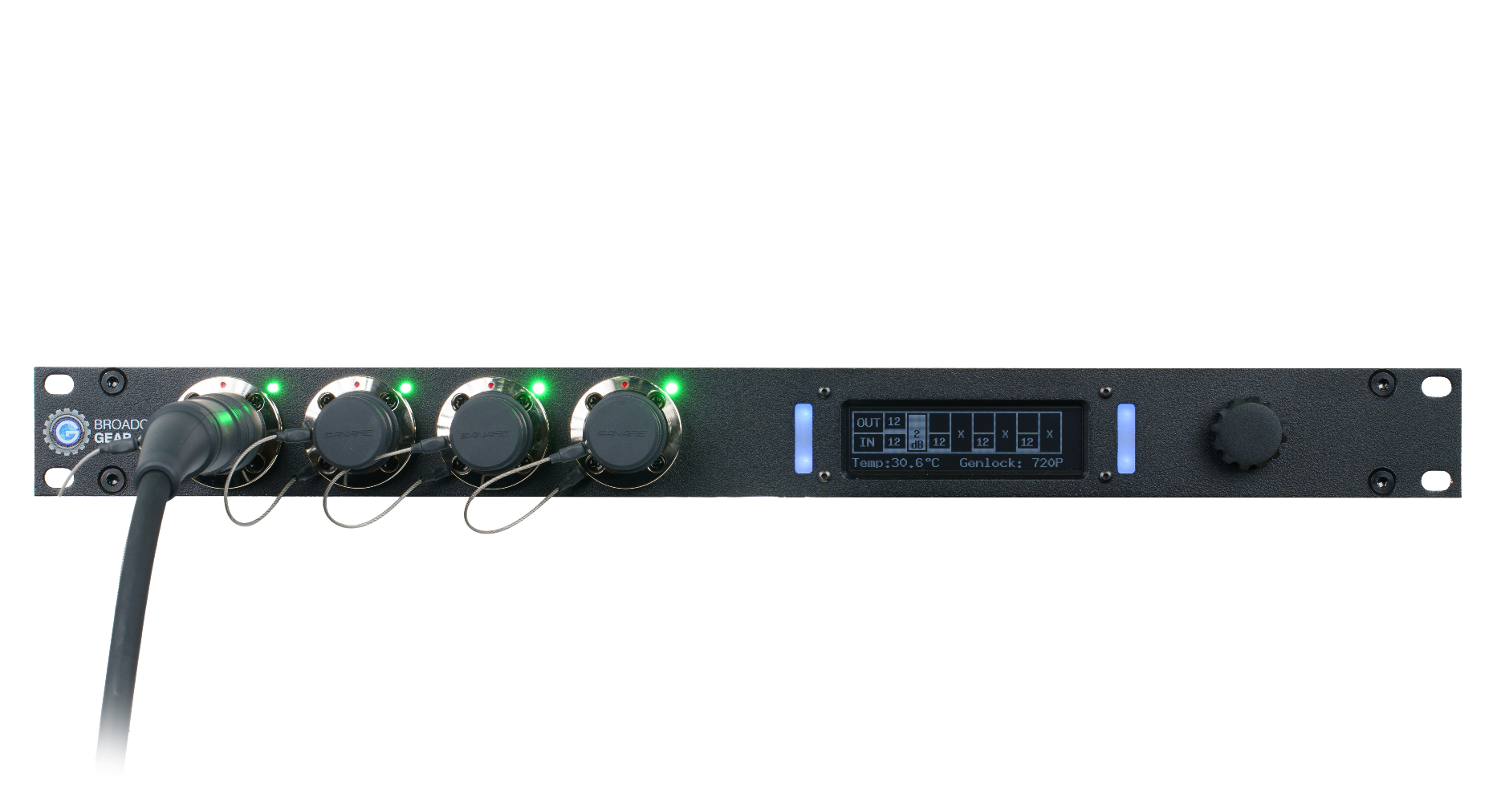

The BroadcastGear Basestation4 is a professional 4K fiber camera system for broadcast, livestreaming, sports, events, and studio productions. Transport power, video, network, intercom, and control signals over a single fiber connection for fast and reliable camera deployment.
Genlock & Timecode Support
Need precise synchronization? Then choose for the BaseStation4 GT model which adds professional timing and sync capabilities for multi-camera productions, ensuring all cameras stay perfectly aligned throughout your workflow.
Specifications
BaseStation4
- 4 channels SMPTE fiber
- Full 4K 12G-SDI in and out
- Shared 1Gbit/s network connection across the converters
- Total power of 500 Watt to the cameras
- Browser based Dashboard with status info about the Base and Converters
BaseStation4 GT (Genlock + Timecode )
- 4 channels SMPTE fiber
- Full 4K 12G-SDI in and out
- Shared 1Gbit/s network connection across the converters
- Total power of 500 Watt to the cameras
- Browser based Dashboard with status info about the Base and Converters
- Central Genlock input with loop output
- Central Timecode input with loop output
SKU: BG-BASE4MK2
€ 7.600
SKU: BG-BASE4MK2GT
€ 8.150
Downloads
Preliminary User Manual
FAQ
Do you offer the Basestation with other connectors?
On request the basestation can be fitted with the following connectors:
- Canare SMPTE 311 Hybrid
- Neutrik Opticalcon Duo*
- Fieldcast 2Core*
- Dual LC*
* Available on request. Fieldcast and LC are NON Hybrid!
Can I upgrade to genlock & timecode later?
Due to the hardware inside the converters and Basestation are different compared to a Genlock / Timecode version. There is no upgrade path to add this at a later time.
I already own MK1 hardware, is MK2 compatible with my existing hardware?
Yes MK1 and MK2 hardware will work together with some limitations! MK2 converters communicate with the Basestation and give converter info back to the Basestation. While MK1 does not have this option on a hardware level.
Also MK2 with GT ( Genlock Timecode ) will only function with Genlock on MK1 Basestations.
