Fibermux Modular
All Your Signals. One Fiber Pair
FiberMux carries up to 16 modules of mixed 12G-SDI, Ethernet, Sync, and Data signals over a single fiber pair using CWDM technology — with zero latency, no compression, and no software to configure or maintain. Unlike routing-based systems, FiberMux is purely transparent: what goes in comes out, in real time. A modular, scalable platform built for engineers who want reliability without vendor lock-in or software licenses.
Your System, Your Way
FiberMux grows with you. Start with the modules you need now and expand your frame up to 16 cards as your production demands increase. Choose from a comprehensive range of SDI, Ethernet, sync, and data transport modules to build a solution that’s configured exactly for your workflow — whether that’s a compact flypack, an OB van, or a full-scale studio infrastructure.

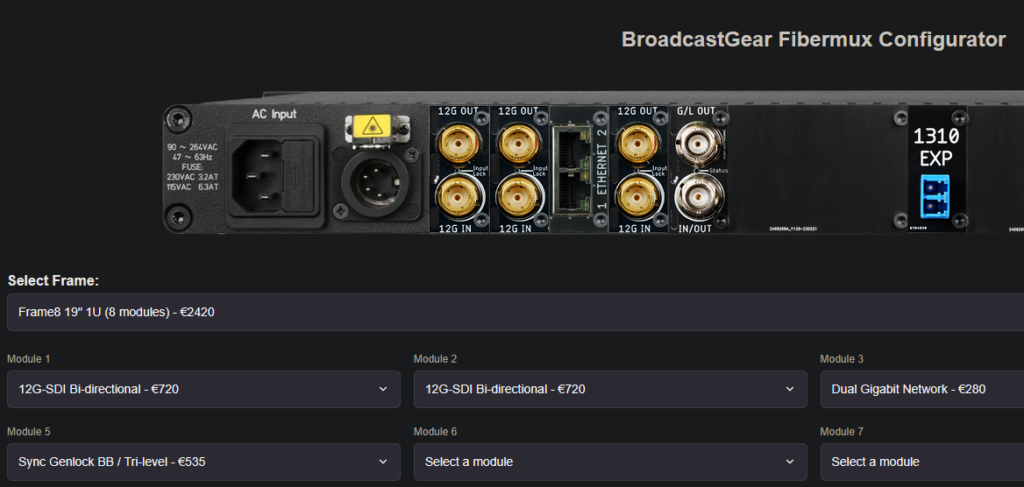

Build Your Own FiberMux Configuration
Configure a FiberMux system tailored to your workflow with the online configurator. Select frame sizes, modules and connectivity options, then request a quote directly for your custom setup.
Simple Plug & Play Deployment

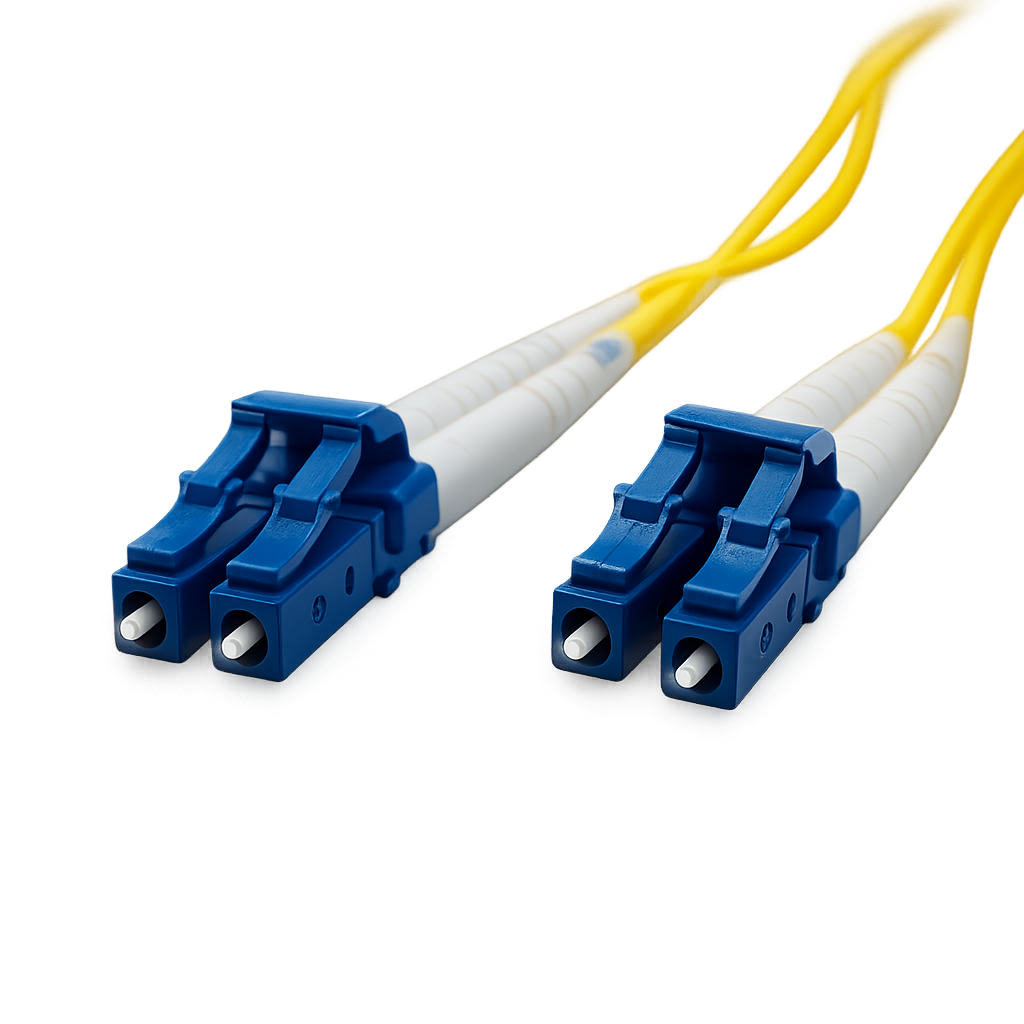

FiberMux systems are designed for fast and reliable deployment using a single LC to LC fiber connection. Simply connect both units, power on the system and start transporting signals without complex configuration or setup. For easy rental applications without the need for a trained professional to connect and configure the muxer.

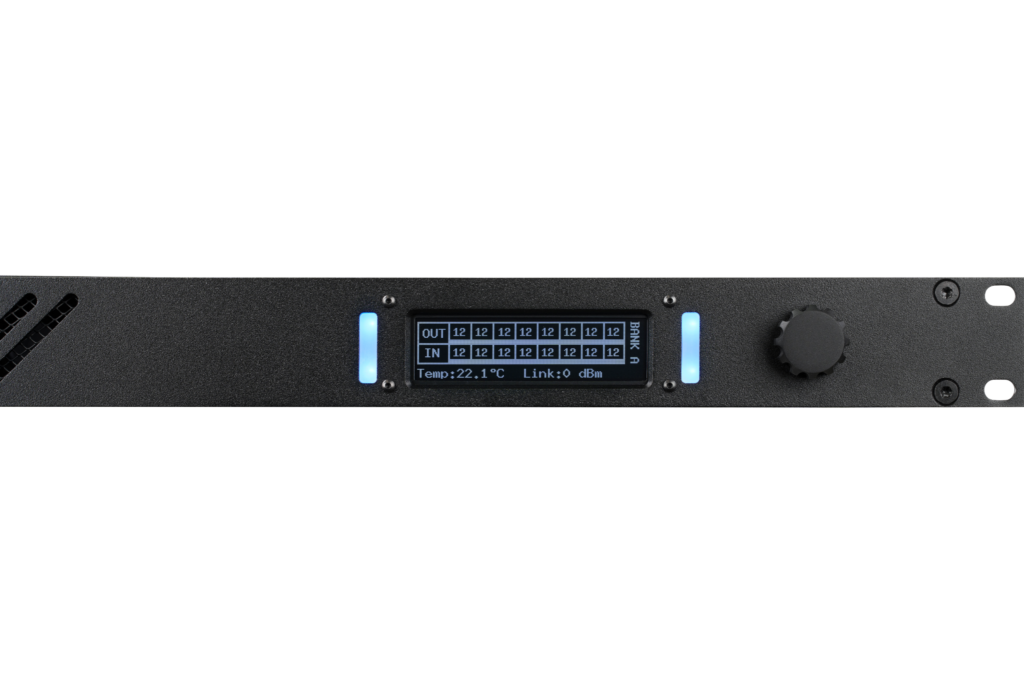

Built-In Monitoring & Diagnostics
View real-time information including installed modules, signal activity, optical RX values and connection status directly from the integrated OLED display and menu structure.

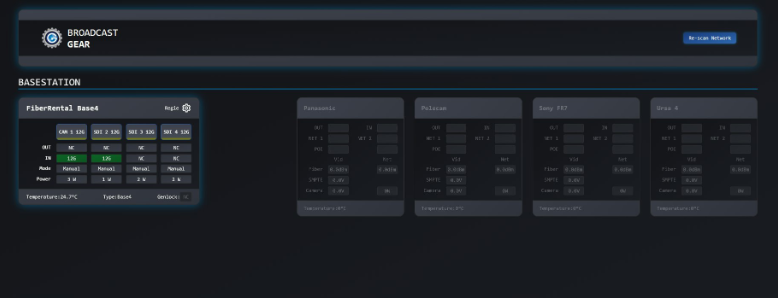

Integrated Web Dashboard
The built-in dashboard provides detailed monitoring of installed modules, signal presence, optical RX levels and all connected FiberMux devices over the network.
Change input names per port and device.

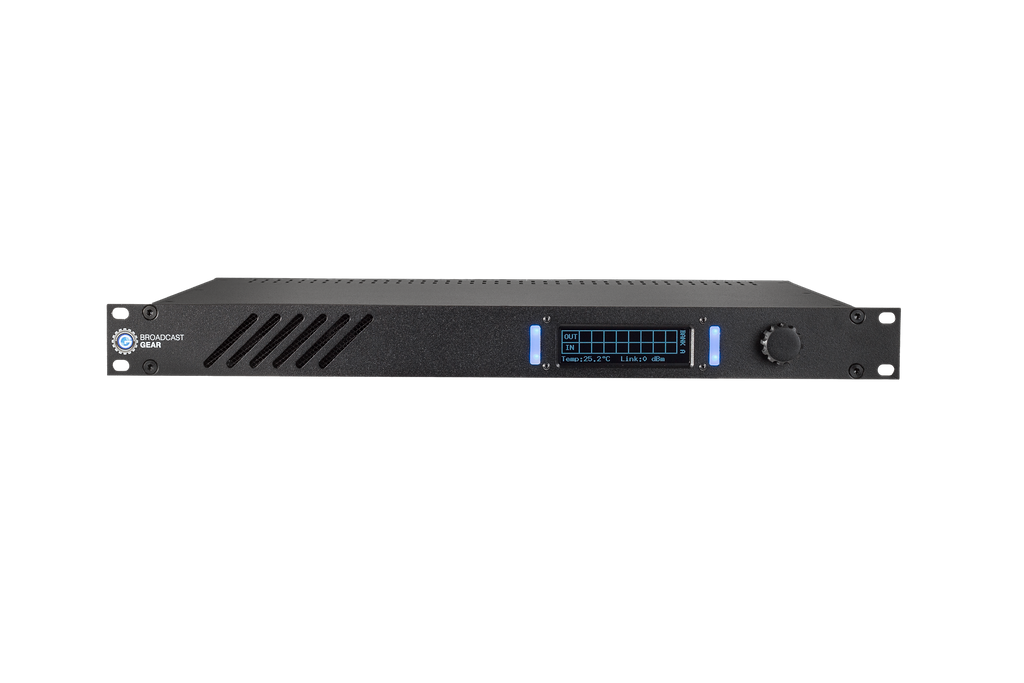

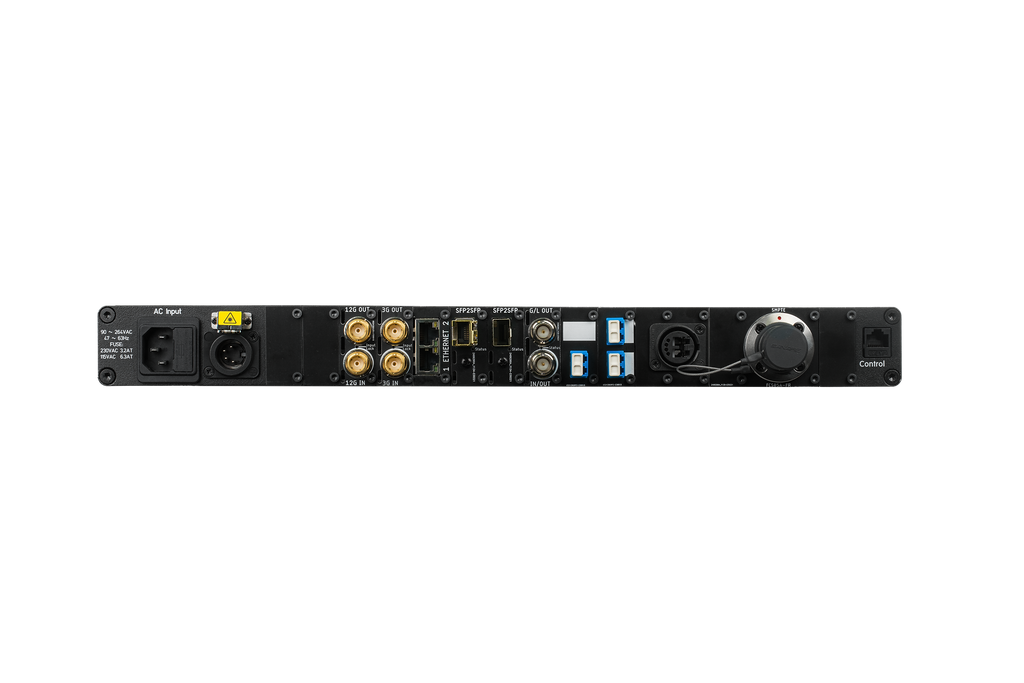

Specifications
- 19″ housing 1RU high
- OLED Status display for fiber status and all In & Output connections.
- Remote Network Status dashboard that allows remote status indication of all mux units via your webbrowser.
- Dual Power capability. Main and XLR4. Also works as redundancy power input.
- Fiber connection on LC. But on request other connectors can be build in at the cost of 2 module spaces.
You choose a frame that will hold X modules. And scroll below and choose the modules you want to add to your muxer.
We offer 4 type of Frames:
BG-FMINI Mini Compact half 19″ 1U unit for 4 Modules € 1540
BG-Frame4 19″ 1U Enclosure with room for 4 Modules. € 1815
BG-Frame8 19″ 1U Enclosure with room for 8 Modules. € 2420
BG-Frame16 19″ 1U Enclosure with room for 16 Modules. € 3355
Modules

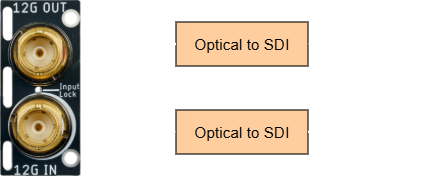

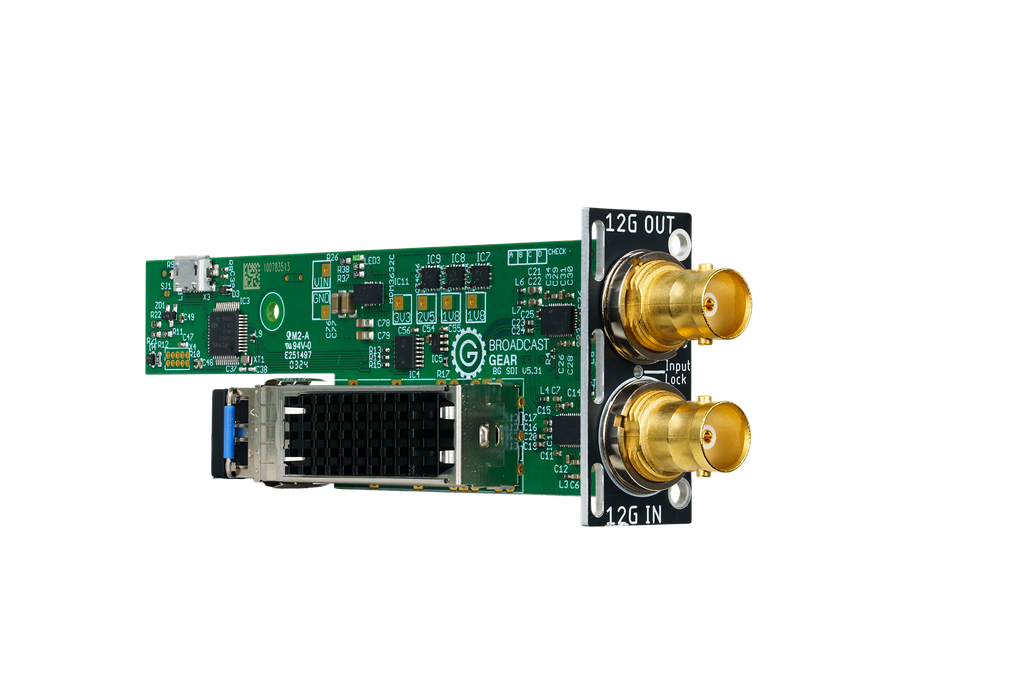

12G-SDI Bi-directional Module
BG-M12GSDI € 720
12G-SDI input to fiber.
12G-SDI output from fiber.
The SDI module is full 2 way.
12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI, MADI (auto switching)
Supports ST2082-1, ST2081-1, ST424, ST292, ST259, ST424, ST292, ST259
Video Standards:
• 4K/UHD 12G/6G / 2160p 23.98/24/25/29.97/30/48/50/59.94/60
• 2K/HD 3G / 1080p 23.98/24/25/29.97/30/48/50/59.94/60
1080i 50/59.94/60
1080PsF 23.98/24/25/29.97/30
720p 23.98/24/25/29.97/30/48/50/59.94/60
• SD 525i29.97 NTSC, 625i25 PAL

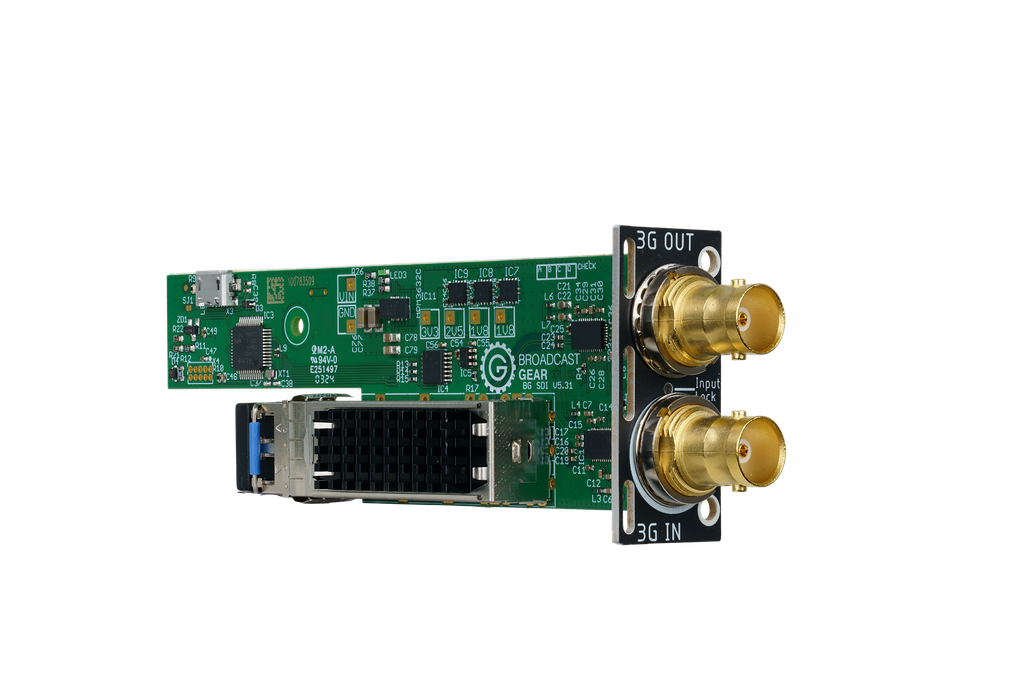

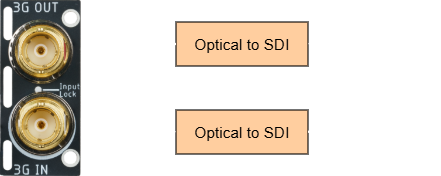

3G-SDI Bi-directional Module
BG-M3GSDI € 400
3G-SDI input to fiber.
3G-SDI output from fiber.
The SDI module is full 2 way.
3G-SDI, HD-SDI, SD-SDI, MADI (auto switching)
Supports ST424, ST292, ST259, ST424, ST292, ST259
Video Standards:
• 2K/HD 3G / 1080p 23.98/24/25/29.97/30/48/50/59.94/60
1080i 50/59.94/60
1080PsF 23.98/24/25/29.97/30
720p 23.98/24/25/29.97/30/48/50/59.94/60
• SD 525i29.97 NTSC, 625i25 PAL

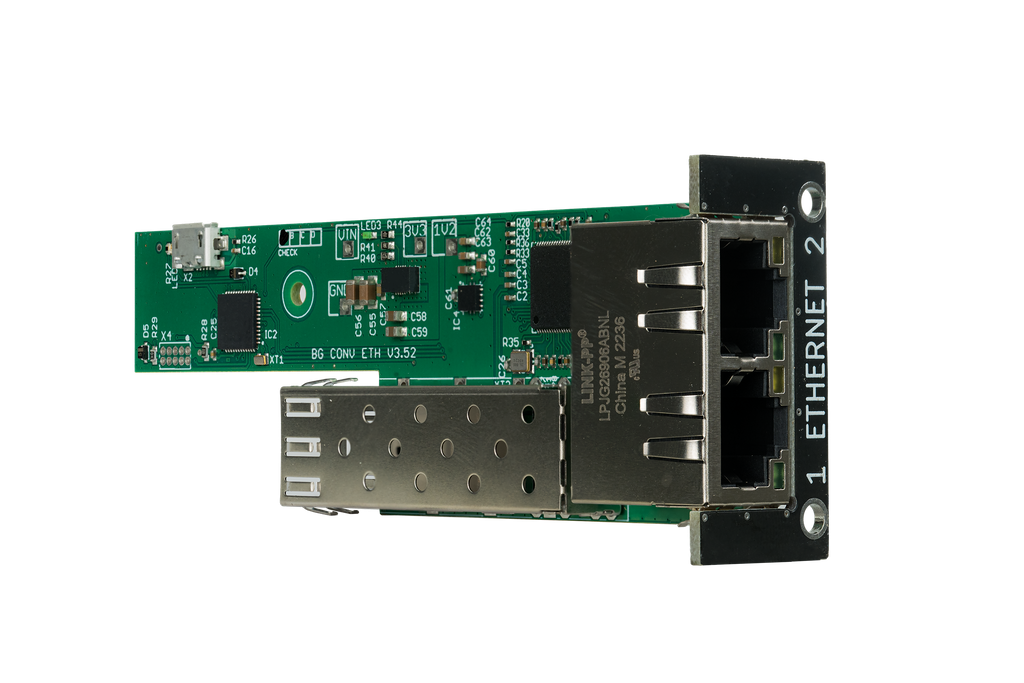

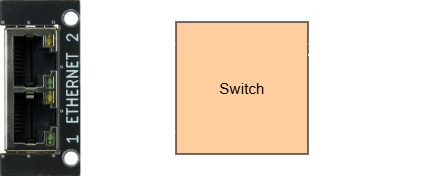

Dual Gigabit Network Module
BG-M2ETH € 280
A dual port switched 1Gbit network module
Both ethernet ports share 1x 1,25Gbit/s Fiber SFP.
Transparant data throughput of Vlans.
Status of both ports is visible in the Frontpanel

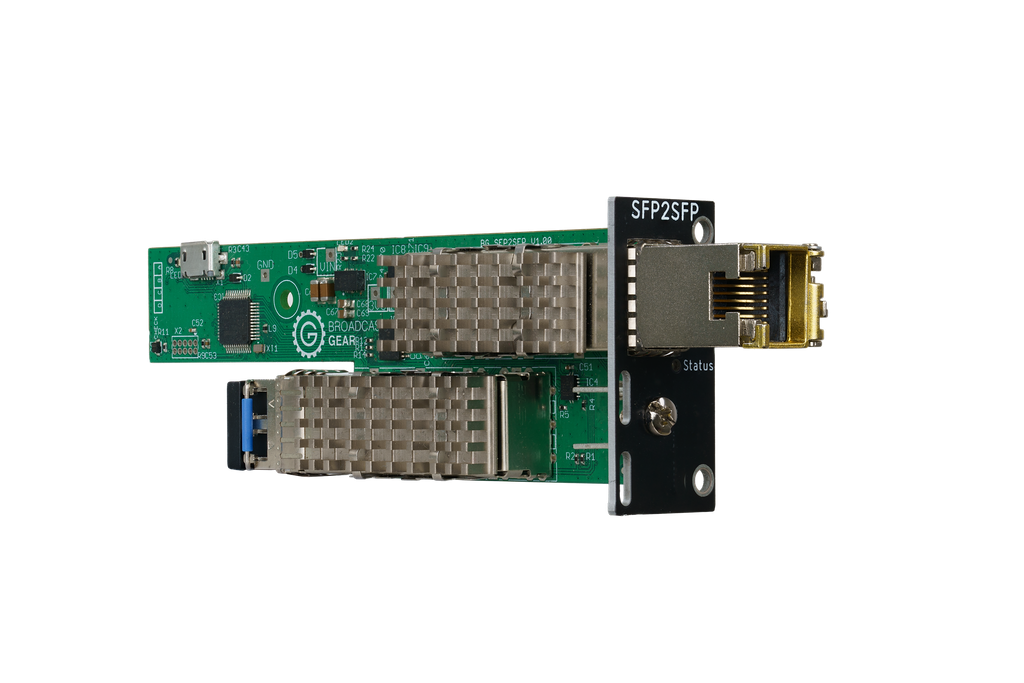

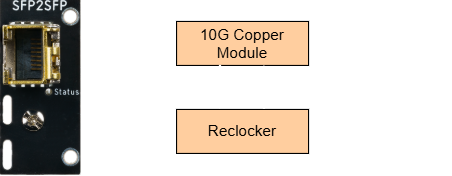

10Gigabit Network Module
BG-M10GETH € 655 ( Coming Soon )
A Single port 10Gbit network module
Data between SFP and Copper unit is reclocked for best performance.
Full speed 10Gbit/s throughput to Fiber.
Transparant data throughput of Vlans.
Status of port is visible in the Frontpanel.
10GB/s Copper module included (max 30m cable lengte on Cat6A/7 !! )
Longer cable lengths in 10G possible on request!

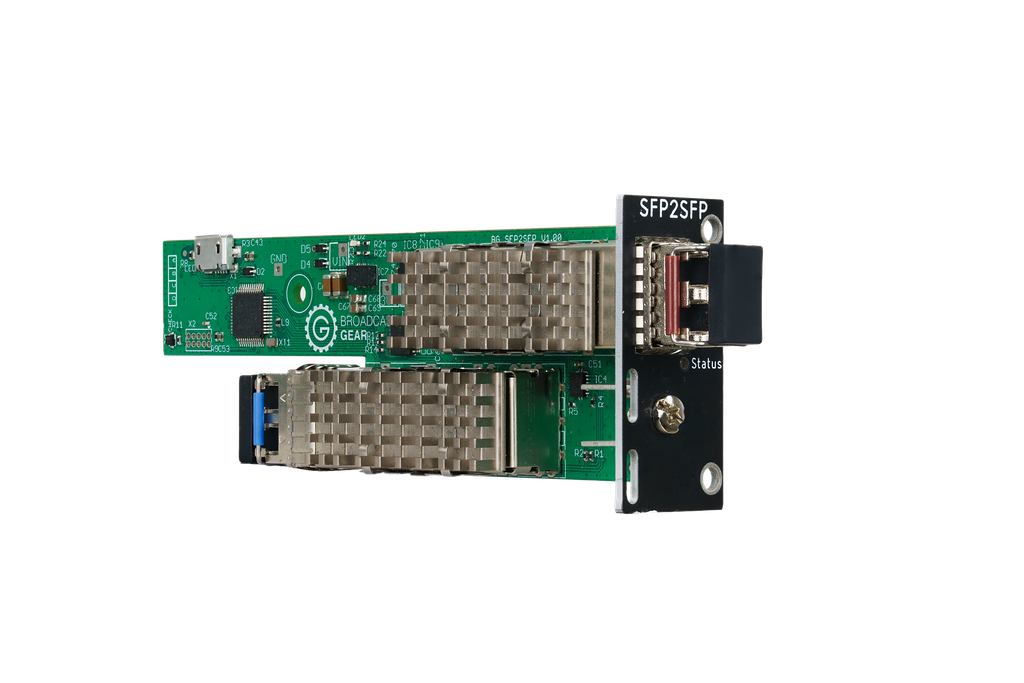

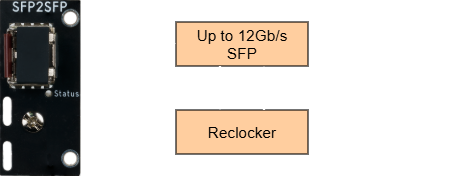

Plug-able SFP Module
BG-MPSFP € 545 ( Coming Soon )
A Single port SFP port that can handle up to 12GB/s of data.
Data between SFP units is reclocked for best performance.
Can be used to do one of the following setups:
– Plugable DAC cable to network Switch.
– 10G Fiber connection to a Switch or different hardware.
– Add Multimode links to your Fiber mux
– Add Fiber connections of the same frequency to merge onto CWDM.
Transparant data throughput.
Status of port is visible in the Frontpanel.
No external SFP included. Only the CWDM that is inside the box.

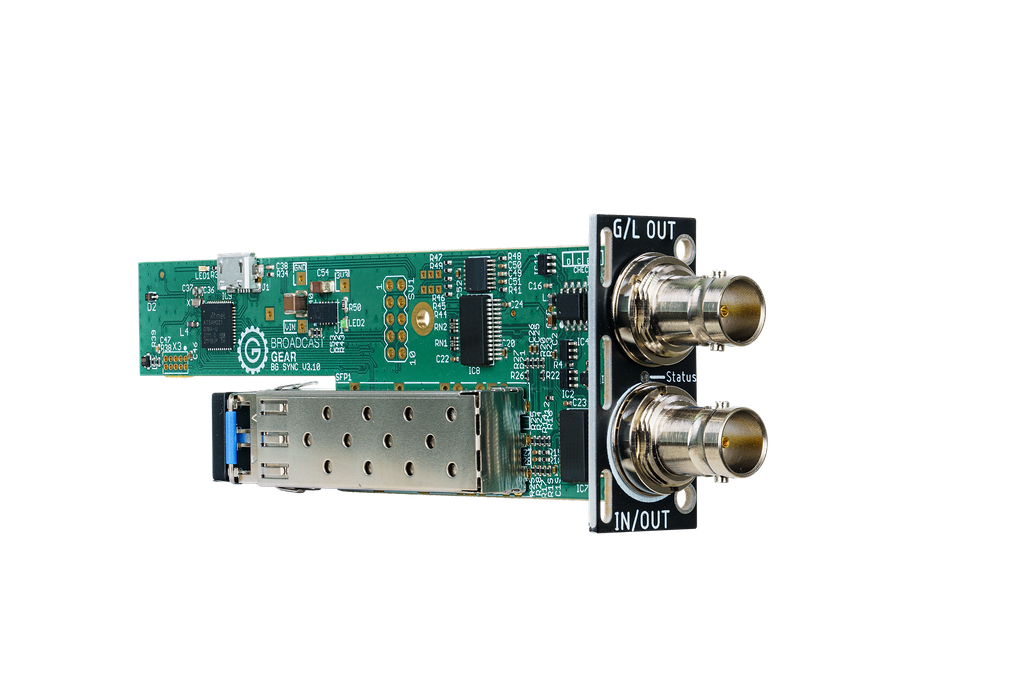

Sync Genlock BB / Tri-level Module
BG-MSYNC € 535
Genlock input / output board.
Transmit side: When Genlock is input at the card, the 2nd port will be loop output.
Receiving side: Both connectors set as output when signal is received from fiber.
Blackburst, Tri-level and Composite Video compatible.

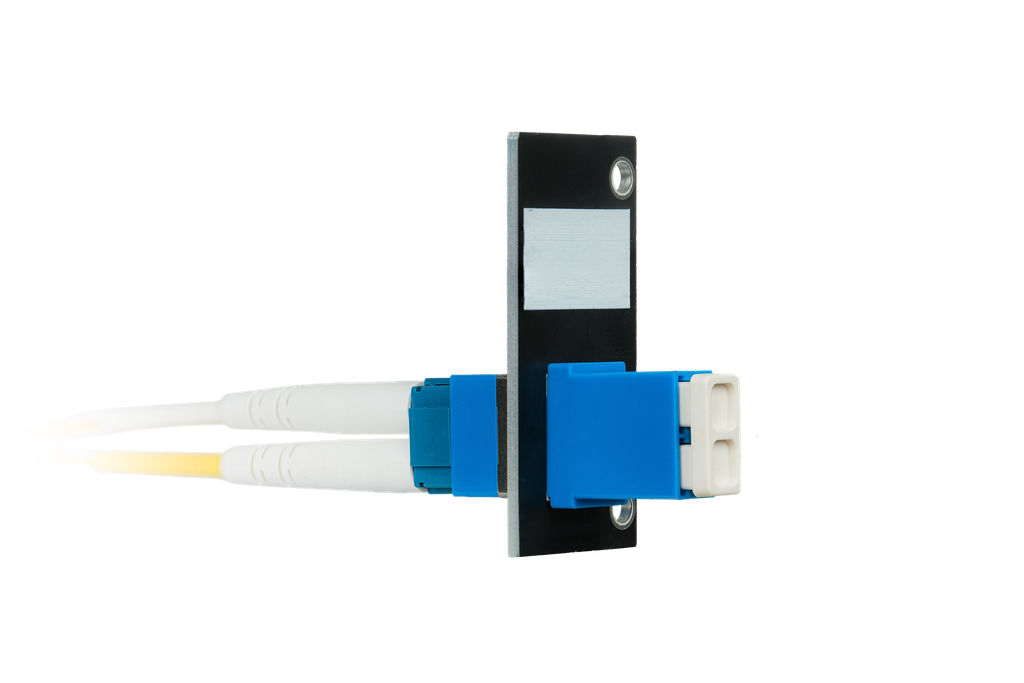

Single LC Port Module
BG-MFLC1 € 15
Available in 1 or 2 dual LC connector block.
Are used to bring LC connections to outside if you want to have certain fiber frequencies available for other hardware outside of the fiber mux.
Also the UPG port on the Frame4 & Frame8 are available trough a LC port Module.

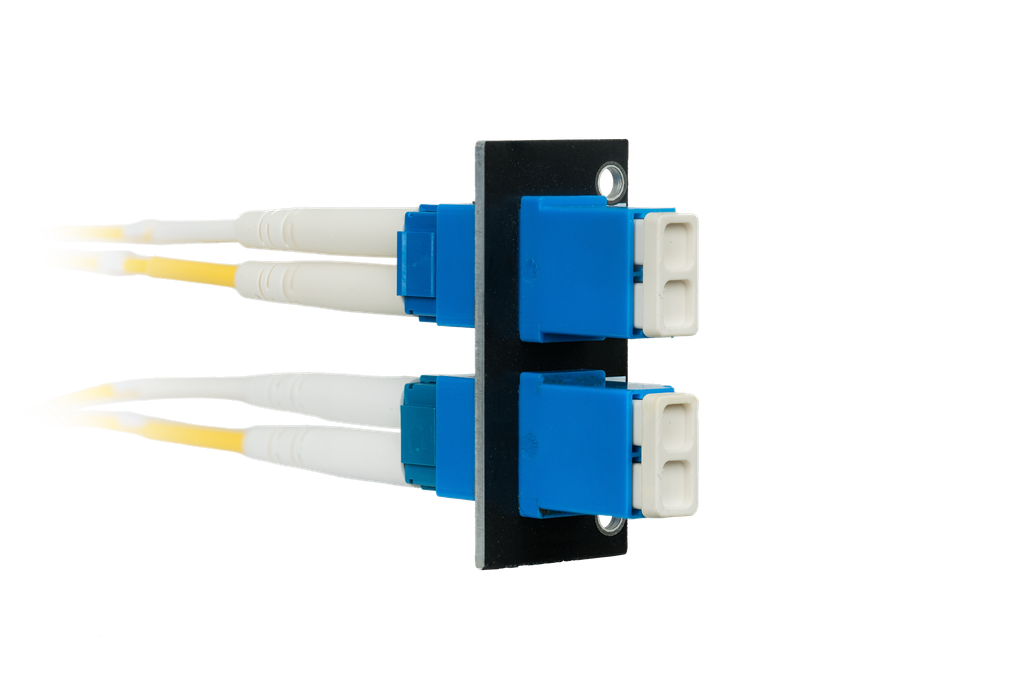

Dual LC Port Module
BG-MFLC2 € 25
Available in 1 or 2 dual LC connector block.
Are used to bring LC connections to outside if you want to have certain fiber frequencies available for other hardware outside of the fiber mux.
Also the UPG port on the Frame4 & Frame8 are available trough a LC port Module.
Downloads
User manual coming soon.
